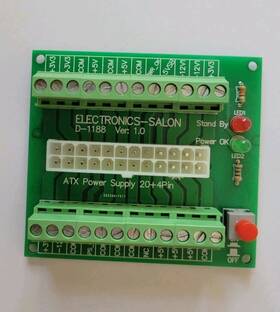

ELECTRONICS SALON D-1188 Psu Breakout Board Atx Power Supply 12V 5V 3.3V Splitter Module

( Brand: Electronics Salon ), ( Manufacturer Part Number: D-1188 ), ( Nominal Voltage Rating: Dc ), ( Current Conversion: Dc To Dc ), ( Style: Board )

Review ELECTRONICS SALON Psu Breakout Board Atx Power Supply Dc 12v 5v 3.3v Splitter Module

The Salon D-1188 PSU Breakout Board is an ATX power supply splitter module designed for use in various electronic projects, particularly in applications that require multiple voltage outputs from a single power supply. This versatile module is an essential tool for hobbyists, engineers, and DIY enthusiasts seeking to power their projects with minimal wiring and complexity.

The Salon D-1188 PSU Breakout Board features a robust design, with a high-quality PCB that can handle the demands of various power supply configurations. It comes with a total of 14 output connectors, including four 12V, four 5V, and six 3.3V connectors, allowing users to power a wide range of components and devices. Each connector is clearly labeled for easy identification and use.

One of the standout features of this breakout board is its compatibility with standard ATX power supplies. Users can simply connect their power supply to the board via the 20 4 pin connector, and the board will automatically distribute the power to the appropriate voltage outputs. This eliminates the need for complex wiring and reduces the risk of connection errors.

The Salon D-1188 PSU Breakout Board also includes over-current protection for each voltage output, ensuring that your components are protected from potential damage caused by power surges. Additionally, the board is constructed from high-quality, ROHS-compliant materials, ensuring that it meets the highest standards of environmental sustainability and safety.

In summary, the Salon D-1188 PSU Breakout Board is a must-have tool for anyone working on electronic projects that require multiple voltage outputs. Its robust design, compatibility with standard ATX power supplies, and built-in over-current protection make it a reliable and versatile solution for powering a wide range of components and devices. Whether you're building a custom computer, a robot, or a complex electronic project, this breakout board is an essential addition to your toolkit.

The Salon D-1188 PSU Breakout Board is a power supply unit (PSU) splitter module designed to distribute 12V, 5V, and 3.3V power from a standard ATX power supply. Here are some pros and cons that might help you decide if this product is suitable for your needs.

1. Versatile: The Salon D-1188 PSU Breakout Board can distribute three different voltage levels from a single ATX power supply, making it a convenient solution for projects that require multiple voltage levels.

2. Easy to Use: The module is designed to be easy to use, with clearly labeled output connectors and a compact form factor. It can be mounted directly onto a PCB or used as a standalone module.

3. Cost-Effective: Compared to using multiple individual power supplies or voltage regulators, using a power supply splitter module like the Salon D-1188 can save you money and simplify your wiring.

4. Reliable: The Salon D-1188 is designed to handle up to 20A of total current, making it a reliable solution for powering small to medium-sized projects.

1. Limited Power: The Salon D-1188 is designed to distribute power from a single ATX power supply, which may not be sufficient for larger projects or those that require higher power consumption.

2. Potential Safety Risks: Working with power supplies and voltage regulators can be dangerous if not handled properly. It is important to follow proper safety procedures when using this module or any other electronic components.

3. Limited Availability: The Salon D-1188 PSU Breakout Board may not be widely available in physical retail stores, and may need to be purchased online.

In conclusion, the Salon D-1188 PSU Breakout Board is a cost-effective, reliable, and versatile solution for distributing multiple voltage levels from a single ATX power supply. However, it may not be suitable for larger projects or those that require higher power consumption. When using this module or any other electronic components, it is important to follow proper safety procedures and ensure that you have the necessary knowledge and experience to handle the components safely.

If you are looking for a power supply solution for a small to medium-sized project that requires multiple voltage levels, the Salon D-1188 PSU Breakout Board is a good option to consider. However, if you require higher power consumption or have limited experience working with electronic components, you may want to consider alternative solutions or seek the advice of a qualified electronics professional.

Details:

With latching button switch to control power ON/OFF. High quality 24Amp per position screw terminal blocks. Stand-By and Power-ON indicator Leds. Electronics-Salon D-1188 PSU 24/20-Pin ATX DC Power Supply Breakout Board 12V 5V 3.3V Splitter Module, - 24-pins Standard Connector, support 20 / 4 24 pins wire header.

part #: d1188 prices

• $21.00-$27.97

specifications voltageregula:

• brand: Electronics Salon
• mpn: D-1188
• nominal voltage rating: Dc
• current conversion: Dc To Dc
• style: Board

payments voltageregula:

• other
• credit card: Diners-club
• wallet: Google-pay

returns voltageregula:

• policy: No Returns

seller voltageregula:

• rating: 100.0%
• city: Columbus, Ohio
• # reviews: 41

shipping voltageregula:

• cost: $5.15
• class: Standard
• type: Calculated
• carrier: USPS
• service: USPS Ground Advantage
• transit: 3-9 Days

offer voltageregula:

• started: November 12, 2025
• sold: 0
• quantity: 1
• options: Ship-to-home
• availability: In Stock

general voltageregula:

• Electronic Components Semiconductors > Semiconductors Actives > Power Regulators Converters
• condition: Used
